G.C.O. Tailgate Anchor System (4th Gen Tacoma) - (V1 NON PTG).

G.C.O. Tailgate Anchor System (V1 non PTG) 4th Gen Tacoma

[Disclaimer! This version does not fit the (Power open and close tailgate) models]

(V2 PTG coming soon)

The GCO V1 is a comprehensive mechanical lockout system designed to eliminate the primary security vulnerability of the 4th Generation Toyota Tacoma tailgate. Rather than a singular deterrent, the V1 utilizes a multi-layered approach to secure the passenger-side hinge and all secondary access points.

———————————————

[The Engineering Advantage]

• The Leverage & Clearance Defense: Standard brackets leave a gap that allows large prybar’s to slip behind them. By machining the N400 to sit completely flush with near zero rear clearance, we eliminated the prybar gap. Even if forced, the compact, thick geometry of our (Anchor) offers zero leverage—a prybar will simply slip off, or the truck's bed metal will deform before the anchor gives way.

• The "Angle Grinder" Myth: Thieves use abrasive composite blades to cut steel. Solid 6061 billet aluminum is a nightmare for standard abrasive cutting wheels—the softer metal instantly clays and clogs the blade's cutting surface, rendering it useless. Furthermore, the tight clearances around the anchor make fitting a Sawzall or grinder into the gap virtually impossible without destroying the truck bed.

• Multi-Layered "Puzzle" Security: Many budget brackets rely on a single, exposed T27 security Torx bolt. In a pinch, these can easily be defeated with a standard flathead screwdriver. We designed our hinge abandonment bolts to sit in a recessed, high-interference zone with less than 2 inches of clearance. You cannot fit a screwdriver handle into the gap, forcing a thief to puzzle-solve a multi-layered system rather than brute-forcing a single exposed bolt.

———————————————

Engineering & Material Selection The primary anchor is CNC-machined from solid 6061-T6 billet aluminum. We specifically selected 6061-T6 for its optimal balance of high yield strength and superior corrosion resistance, ensuring the anchor easily withstands the road salt, debris, and thermal cycling typical of an exposed truck bed environment.

Mechanical Design & Security Layers

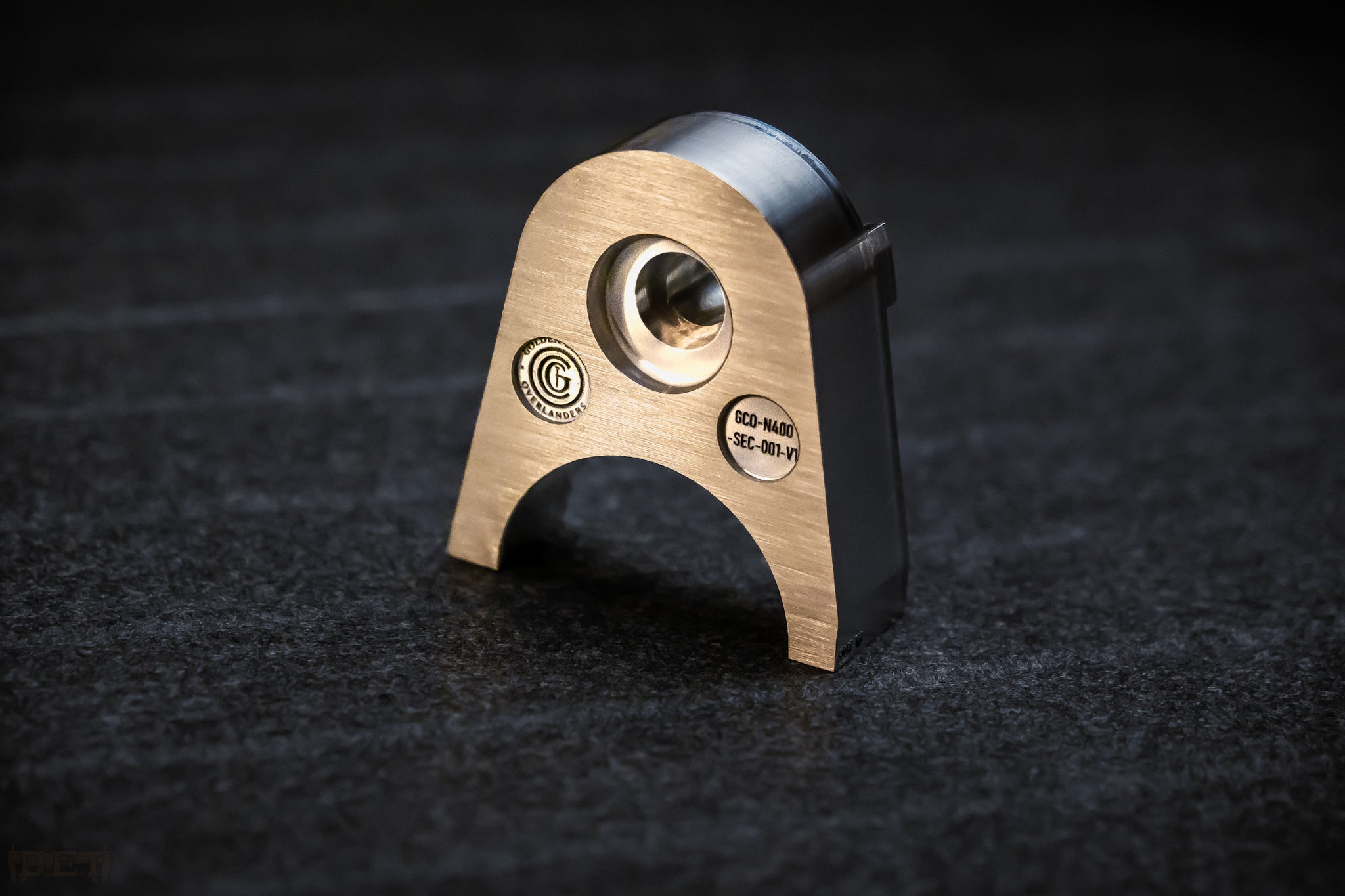

• Primary Anchor: Features a raised perimeter flange to restrict leverage access and dual-stepped alignment bosses that mimic the OEM hinge profile for precise axial fitment.

• Carriage Bolt Integration: The system utilizes an 18-8 stainless steel carriage bolt. The anchor’s front face features a precision-machined clearance recess to accept the bolt's square boss, allowing the smooth, rounded head to sit cleanly against the anchor and eliminate grip surfaces for forced-rotation attacks.

• Integrated Lockout: The carriage bolt is custom-machined and cross-drilled to accept an included ABUS aluminum-body padlock, physically preventing the mounting nuts from being backed off the threads.

• Access Denial Suite: The system includes four 18-8 stainless steel security Torx fasteners. Two replace the factory tail light bolts to prevent rear-access to the anchor, and two oversized fastener's secure the tailgate-side hinge.

Technical Specifications

• Anchor Material: 6061-T6 Billet Aluminum (Brushed finish).

• Hardware: 18-8 Stainless Steel (Carriage bolt, security Torx, nuts, and washers).

• Security: Custom-marked German ABUS padlock with two matched keys.

• Identification: Laser-marked GCO logo, serial ID, and material grade.

• Manufacturing: Machined and packaged in California.

Installation & Packaging The V1 system requires no drilling or permanent modification to the vehicle. Each kit is shipped in custom black packaging and includes a laser-marked aluminum reference card detailing the technical installation steps.
OR
Refer to the Install guide here: https://goldencoastoverlanders.com/pages/install-info?_pos=2&_psq=ins&_ss=e&_v=1.0

Disclaimer: We over-engineer our hardware to be the toughest deterrent on the market, but given enough time and power tools, no security device on earth is 100% invincible. The anchor system is designed to completely prevent standard bypasses and make theft exceptionally difficult. However, Golden Coast Overlanders cannot guarantee absolute prevention of theft, and is not liable for any loss, theft, or damage to your vehicle, tailgate, or property.
